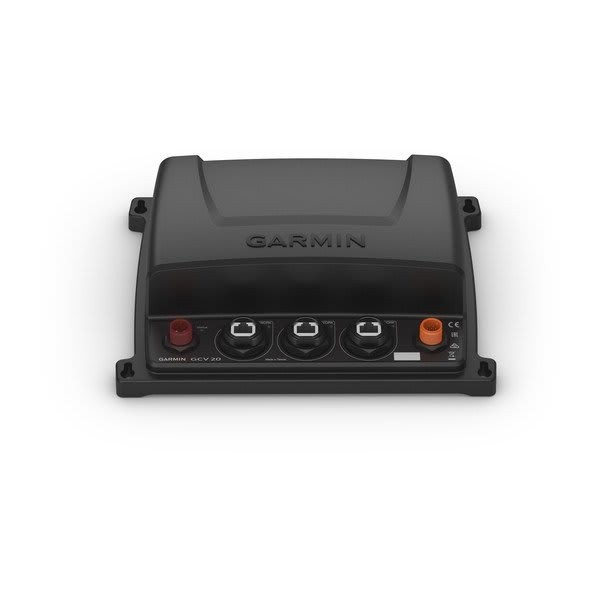

The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail.
Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars — with frequencies ranging from 0.
8 Mega Hertz to 1.
2 Mega Hertz to your compatible chartplotter.
And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix â„¢ all-seeing sonar.
It includes a max power output of 500 watts.
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
This mode delivers stunningly clear images of structure and fish off to the sides of your boat.
This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
- Use For Superior Ultra High-Definition Image
- 9.9 Inch Length x 7.6 Inch Width x 2.6 Inch Depth
- 800 kHz ClearVü Frequency/ 1200 kHz SideVü Frequency
- 10.5 Watt
- 10 To 35 Input Volt
- 5 Degree Fahrenheit To 158 Degree Fahrenheit Operating Temperature
- IPX7 Rating Waterproof

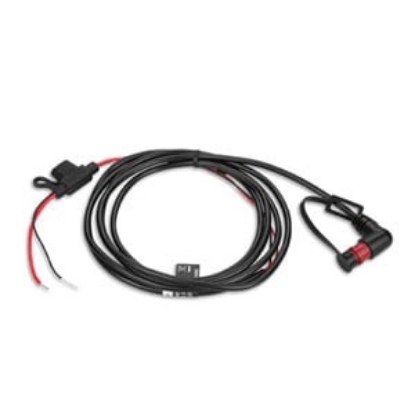

- With Right-Angle Power Cable/ Right-Angle Ethernet Cable/ Mounting Hardware
