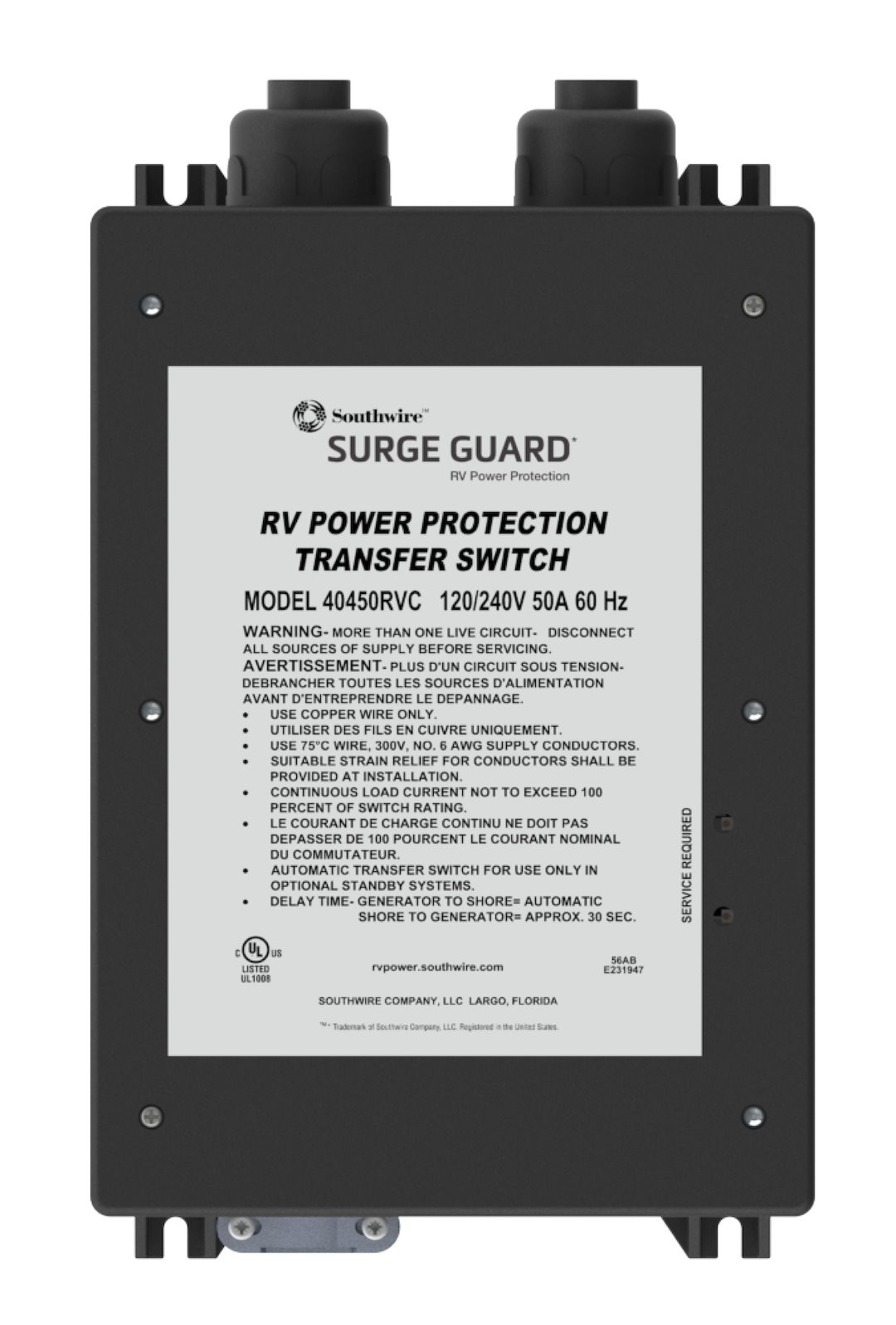

40450RVC3 SouthWire Corp. Power Transfer Switch

Transfers to generator power automatically when energized after 30 second delay generator mode.
Once generator shuts down, shore power activates after 3 second delay.

• Transfer Power Between Shore And RV Generator
• Automatic
• 120/ 240 Volts
• 50 Amp
• 8.84 Inch Width x 13-1/2 Inch Height x 5.21 Inch Depth
• Protects Against Excessive Voltage/ Mis-Wired Pedestal/ Open Neutral/ Open Ground/ High And Low Frequency And Reverse Polarity

• Transfers to generator power automatically when energized after 30 second delay generator mode.
  Once generator shuts down, shore power activates after 3 second delay.
