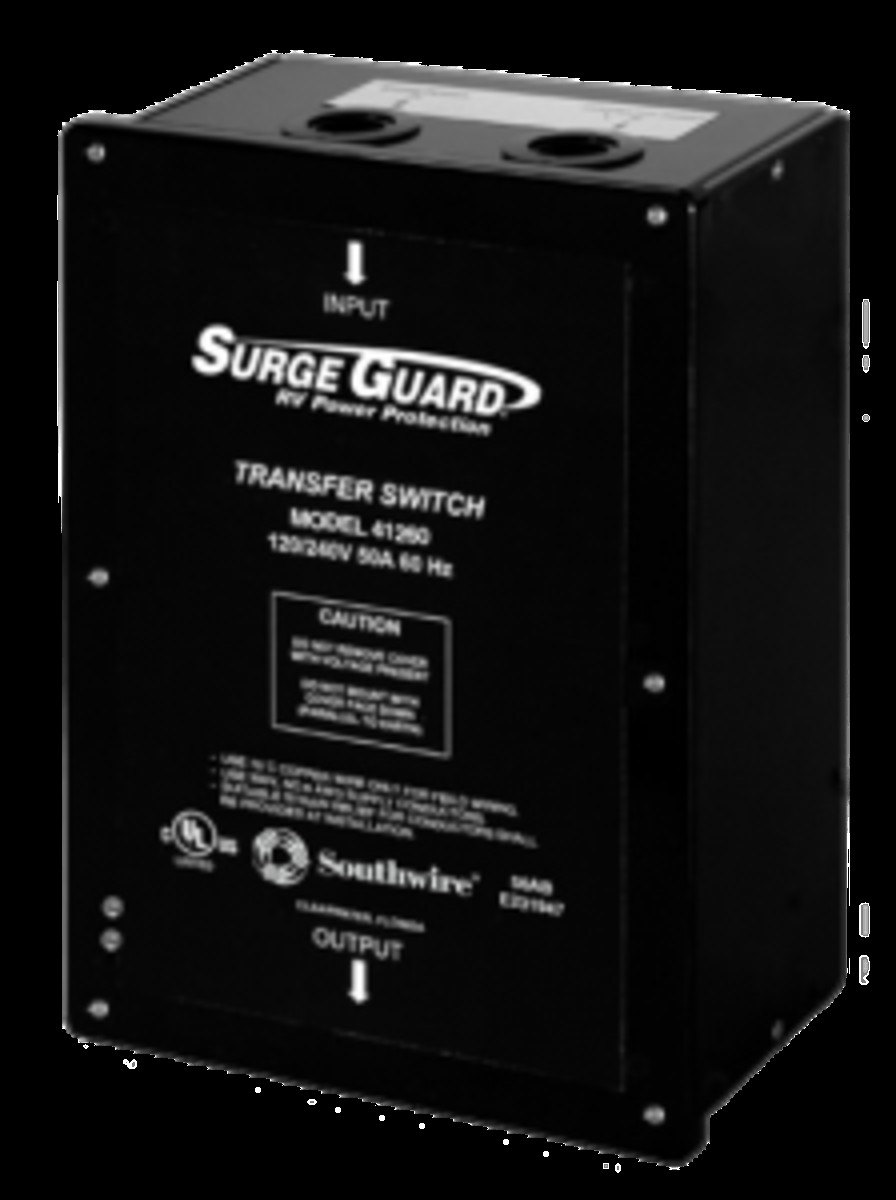

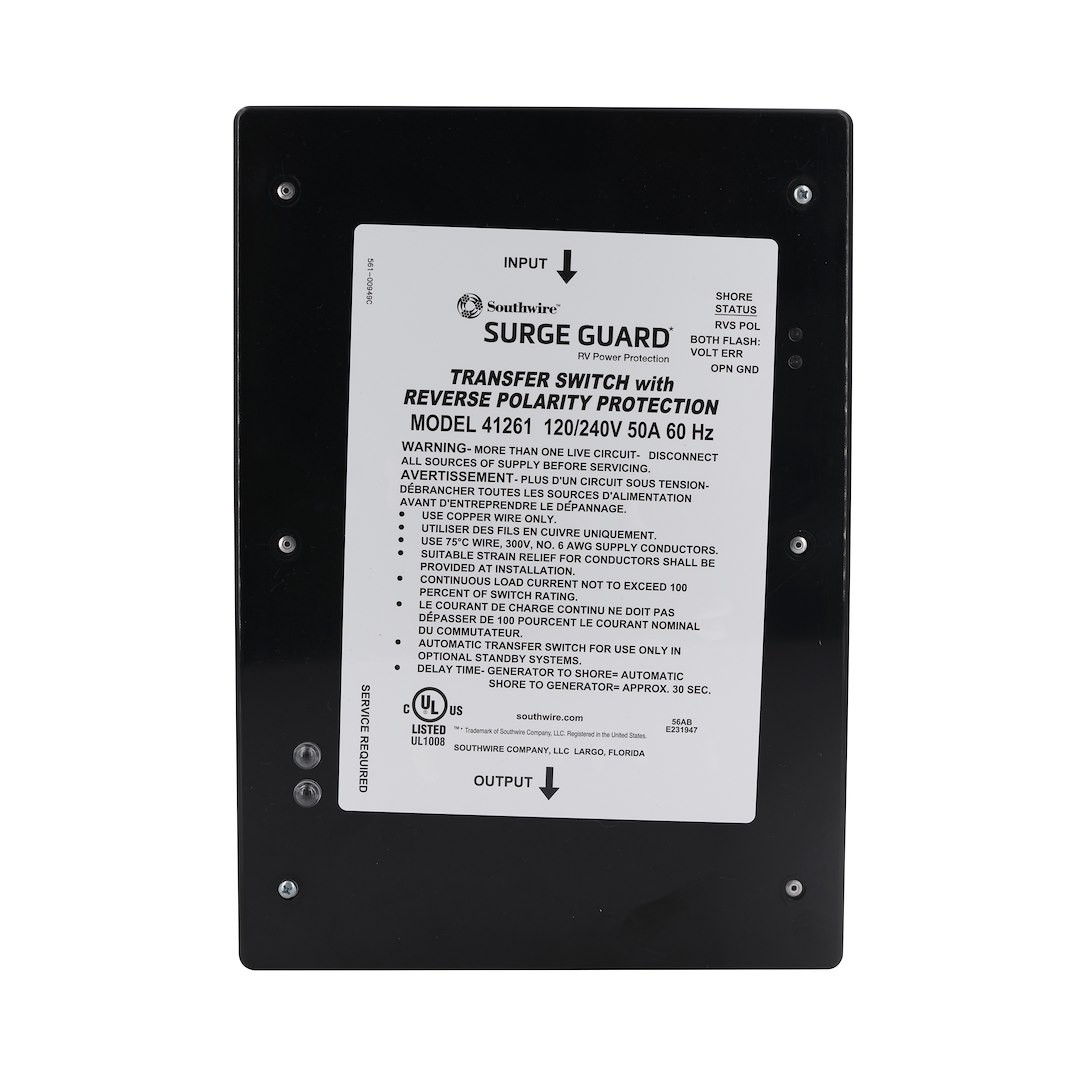

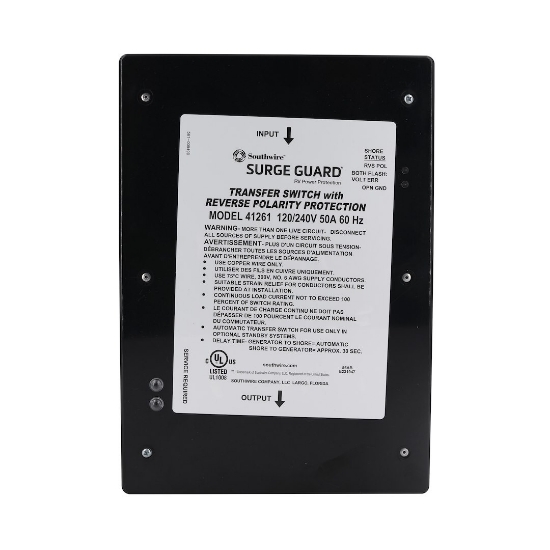

Automatic transfer switch with full electrical protection from Southwire ® is designed with dual 80A Chint contactors that include a mechanical interlock to ensure safe operation.
The mechanical interlock design prevents both contactors from engaging at the same time.
The rugged plastic box provides a safe and secure enclosure for the transfer switch device.
Avoid the potential of corrosion, sharp edges, and risk of an energized enclosure that comes with a metal box.
- Transfer Power Between Shore And RV Generator
- Automatic
- 120/ 240 Volt
- 50 Amp
- 8.84 Inch Width x 13-1/2 Inch Height x 5.21 Inch Depth
- Protects Against Excessive Voltage/ Mis-Wired Pedestal/ Open Neutral/ Open Ground/ High And Low Frequency And Reverse Polarity
