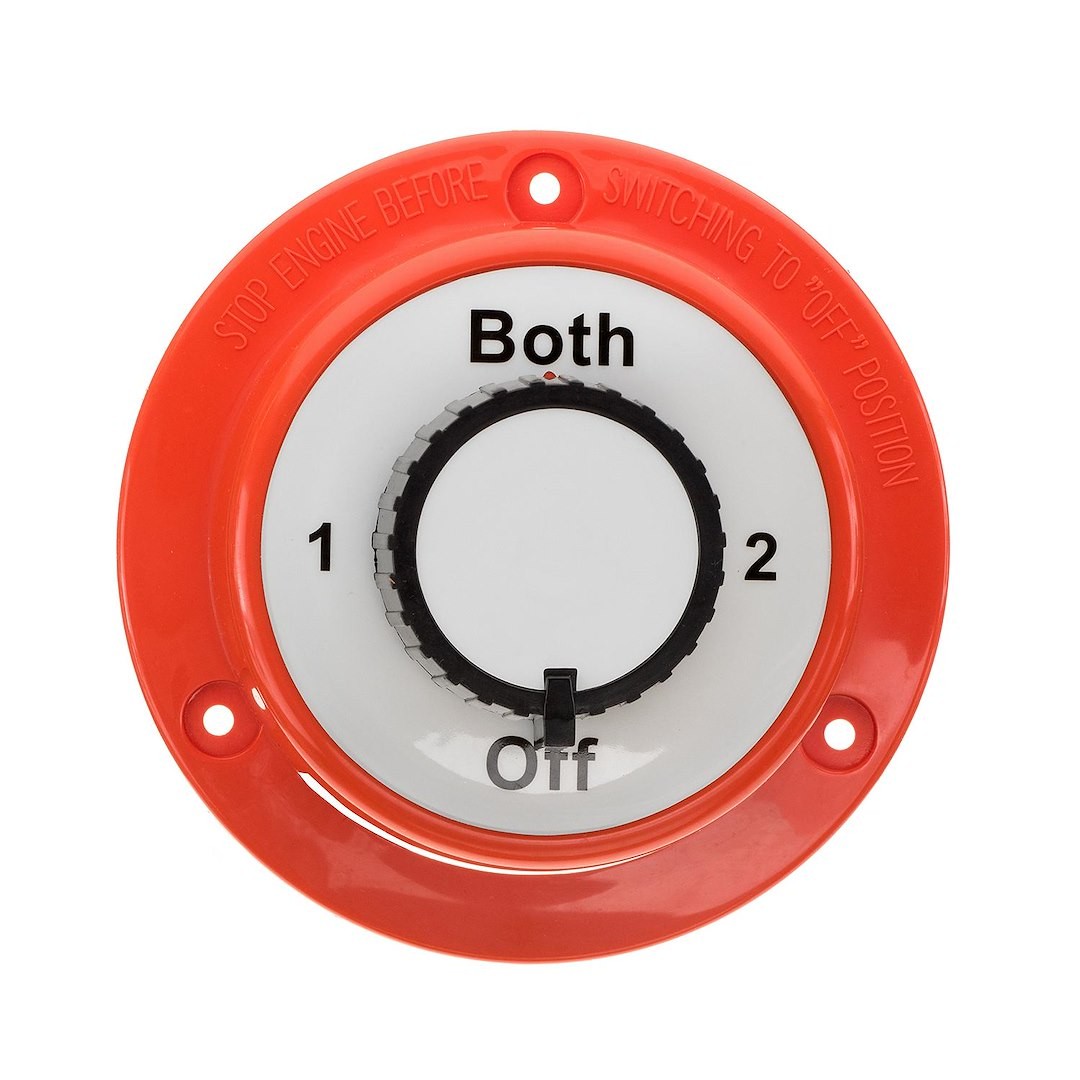

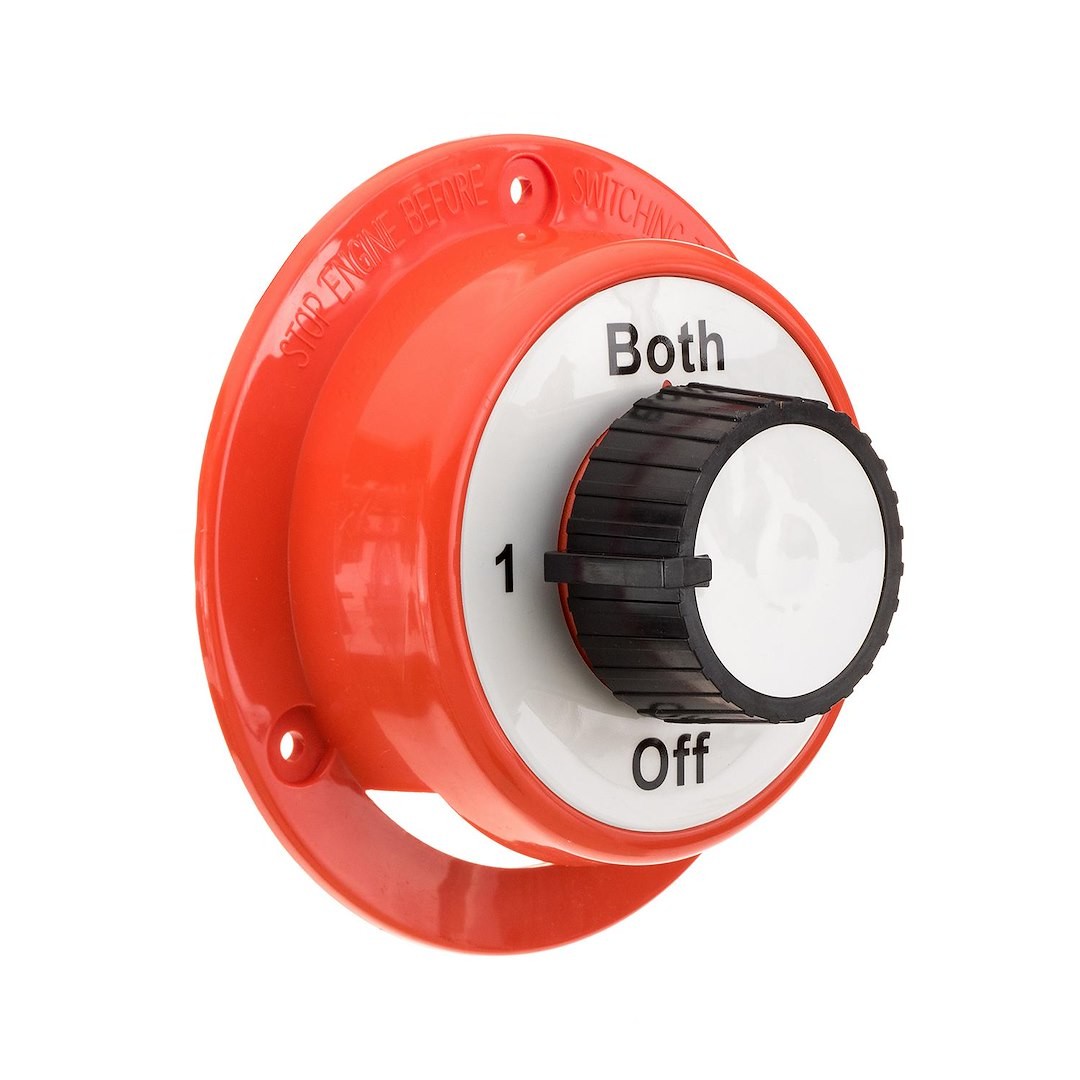

Single-pole, triple-throw switch permits four connection modes: battery one, battery two, two batteries in parallel, or both off.
Rated for 300-amps continuous at 6-volt DC and 150-amps continuous at 12-volt DC.
For 6-volt to 32-volt D.
C.
systems.
Features alternator field circuit disconnect to prevent surges.
Selector has positive click positions.

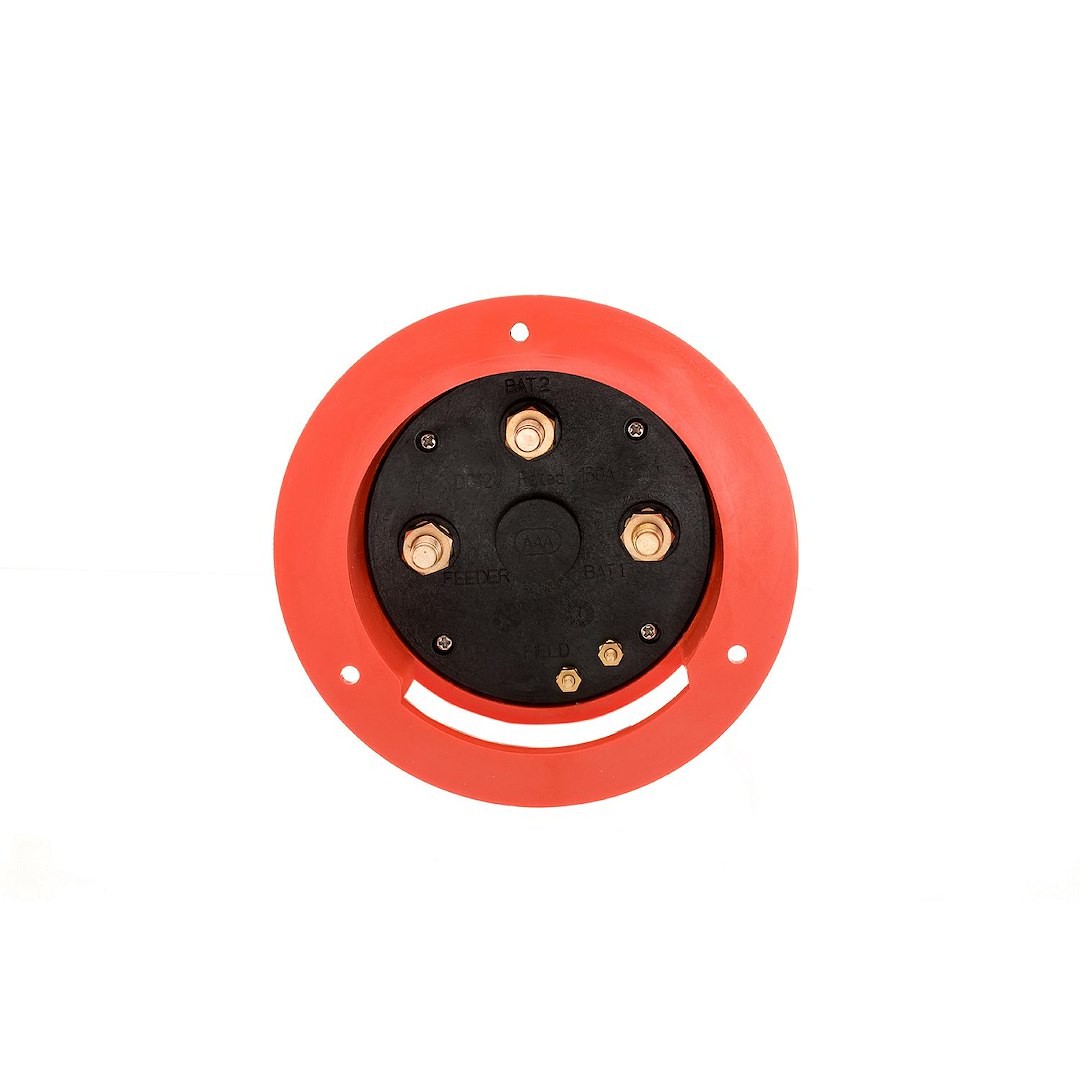

Bakelite housing with copper washers, brass terminals, and brass nuts.
- Used For Protection Against Theft
- 6 Volt DC/ 12 Volt DC
- Single Pole Triple Throw Switch
- 300 Amps Continuous At 6 Volt DC And 150 Amps Continuous At 12 Volt DC
- 5-1/2 Inch Base Diameter
- With Alternator Field Circuit Disconnect To Prevent Surges And #10 Screws
Single-pole, triple-throw switch permits four connection modes: battery one, battery two, two batteries in parallel, or both off.
Rated for 300-amps continuous at 6-volt DC and 150-amps continuous at 12-volt DC.
For 6-volt to 32-volt D.
C.
