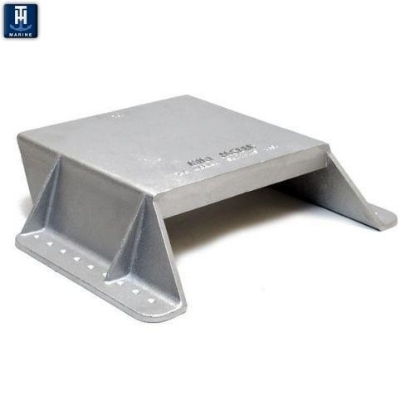

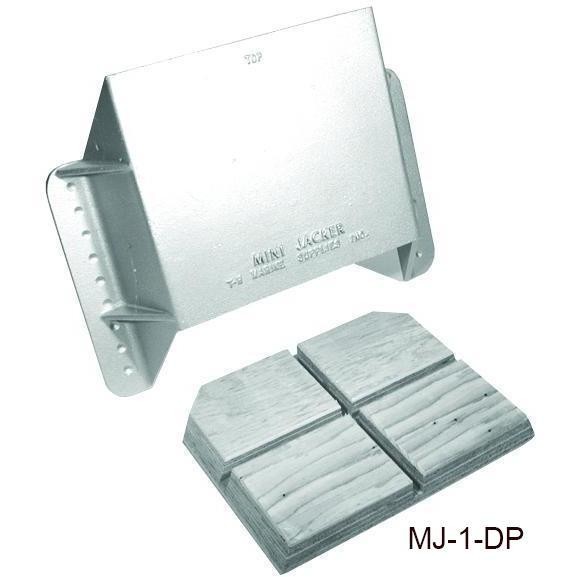

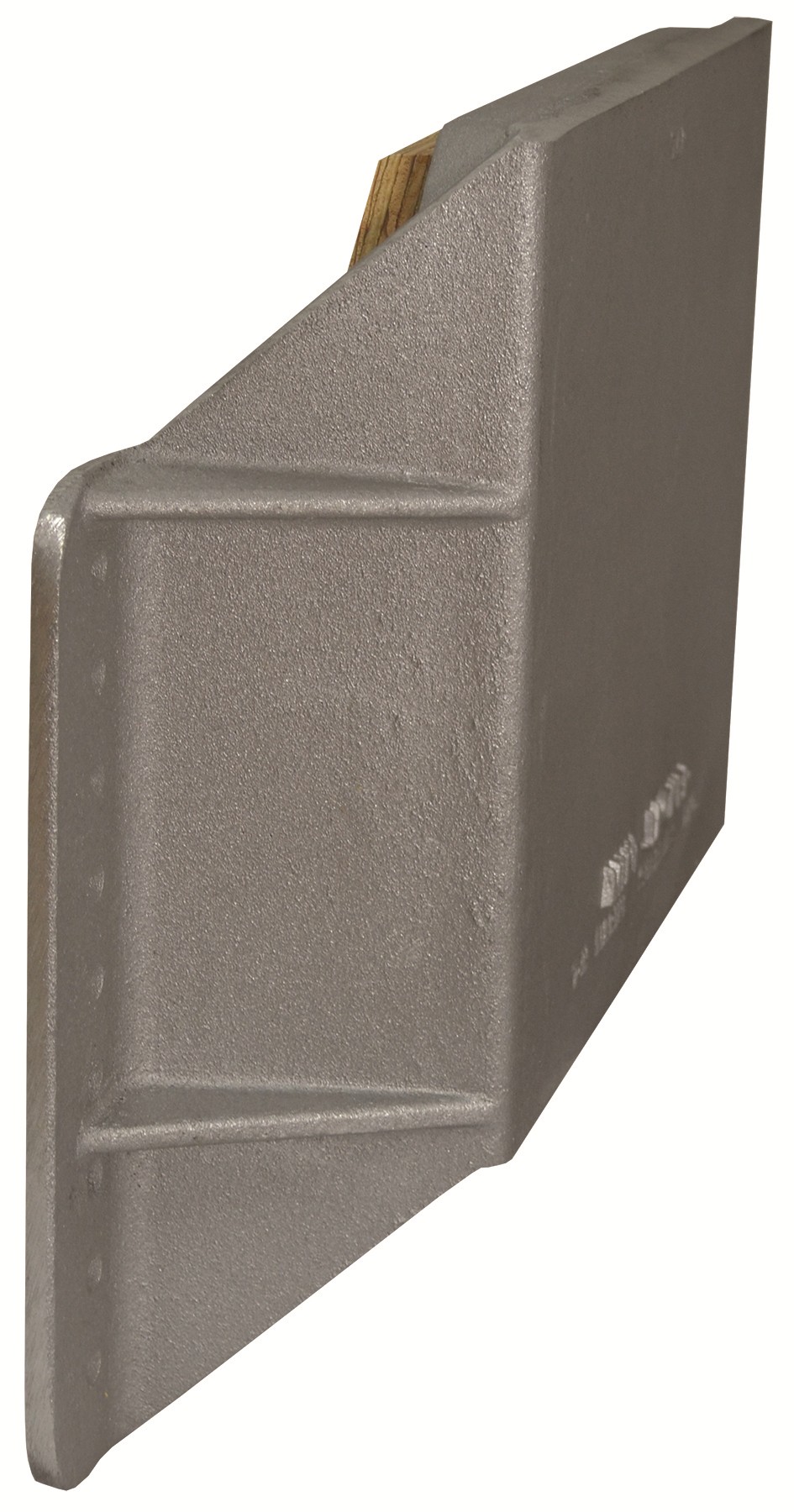

This cast aluminum offset type jack plate is designed for clamp-on mount outboard motors up to 35 Horse Power.
The Mini Jacker â„¢ allows mounting of long shaft motors to shorter shaft transom boats.
The mini-jacker â„¢ stands off transom 4 Inch.
The engine mounting surface is 11 1/2 Inch wide x 10 Inch high and features a vertical offset of 3 Inch.
The overall width of transom mounting flanges is 17 Inch.
- 4 Inch Setback
- 35 Maximum Horsepower
- 3 Inch Fixed Vertical Offset
- Aluminum
- With Wood Transom Block
